CODE CUBE

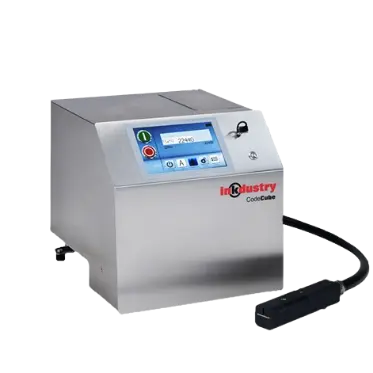

The CodeCube XL is    the universal device for most applications   .
This offers a compact size and the possibility to process special scripts.
The CodeCube XL offers..


    The CodeCube XL offers you highest quality, reliable standard coding at minimum price without with no compromises in regards to operational safety and user friendliness.
    As the first system of its kind, the The user interface works with informative symbols. The menues are clearly structured without complicated menu trees. Print text design is fully grafically with up to 48 pixel in height. Beside the quality printmodes, also highspeed printmodes can be installed. By using a usb-stick, text and configurations can be transfered easily. The network connection which is integrated as standard, allows easy integration into the company intranet.
    To achieve a safe operation, our basic model comprises exclusively high quality parts, especially in the sensitive inksystem
    Features
    • Large coloured 7 inch Touch-Display
    • Symbol based easy operation
    • Easy handling
    • Compact size
    • Remote screen in Intranet
    • Easy datatransfer by USB-Stick
    • Standard interfaces (USB, Ethernet)
    • Integrated production statistics
    • Easy refillable 1 liter reservoirs
    • up to 48 Pixel in height Text / Grafic combinable
    • Highspeed modes possible
    • Script functionality for complex applications
    • High reliability


    • Technical Data
      Housing
      Stainless steel, IP54, IP65

      Printhead
      Aluminium, anodized

      Environment
      Temperature 5-45°C
      Humidity 10-90% non cond.
      Mains 80-240V~ 50/60 Hz

      Interfaces
      Ethernet, USB
      Printmodes
      5 Dot – 48 Dot Grafic
      Printheight
      5 – 12 mm
      Memory
      > 300 MByte
      Connectors
      Printgo, Incremental encoder, 3 Signal Light Outputs
      2 Inputs, 2 Outputs (all 24V)
